Customer Only

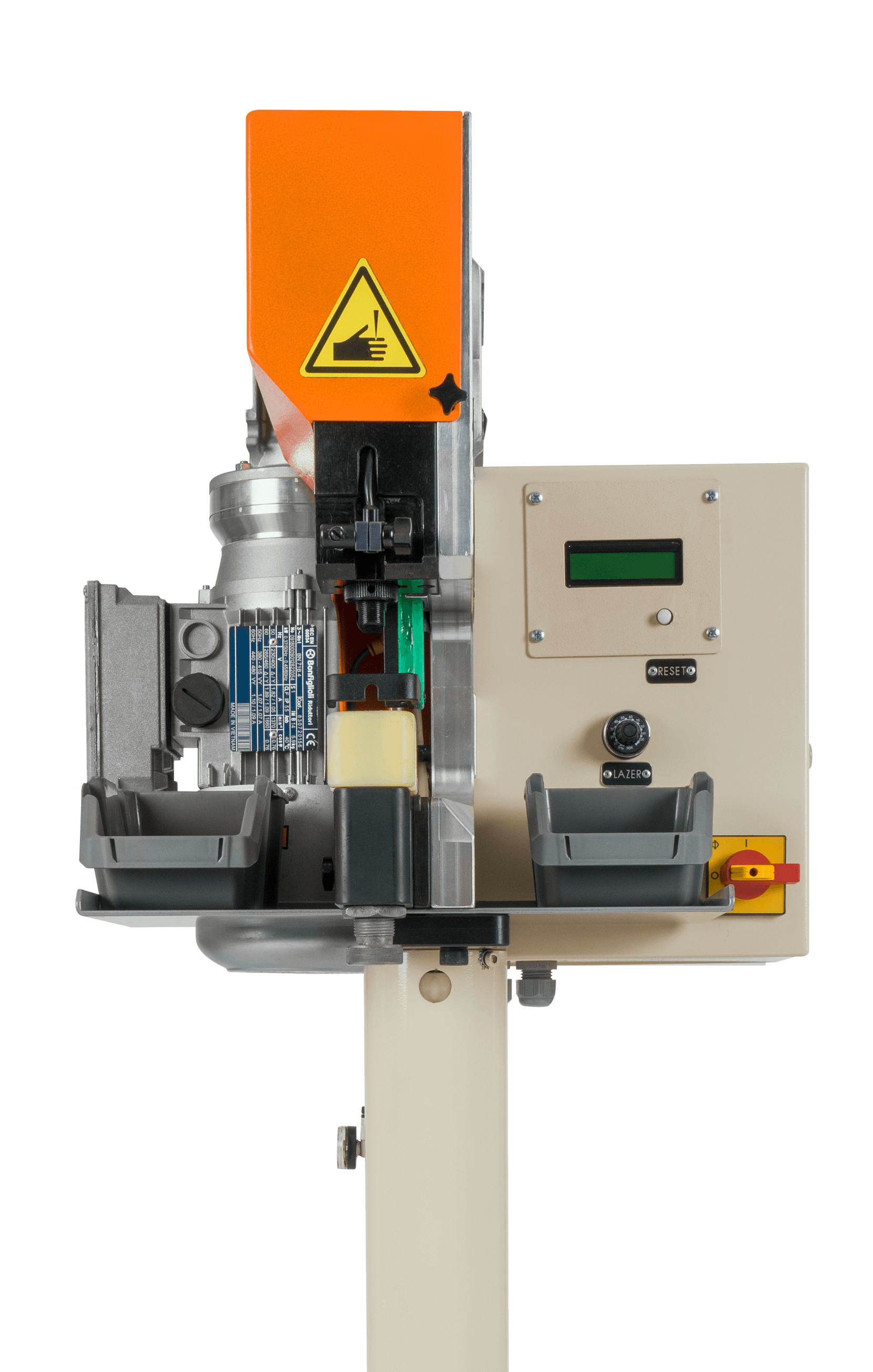

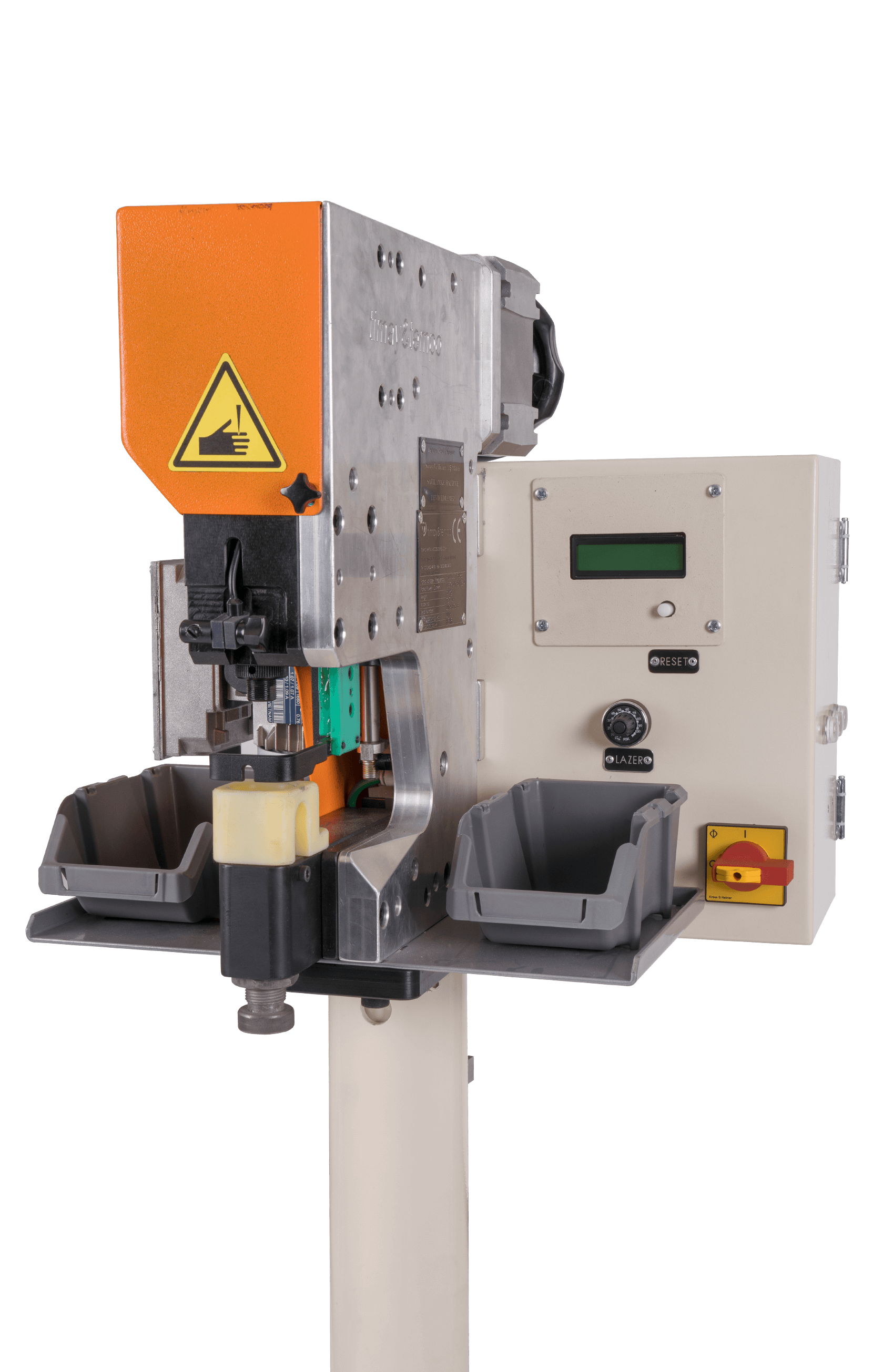

Manual Fastening Machine

Electrical Engine

It is used in the nailing operations of all the accessories needed in the production of ready-made clothing. T&T-06, which is called manual because the upper and lower parts are manually placed during the nailing process, performs nailing by means of an electric motor.


  • Fixed Hand Safety and Safe Pedal System help prevent work accidents and secure the life safety of users.
  • The Laser Marking Light helps users identify the correct fastening point.
  • Wide Jaw Cavity allows for easy nailing. Total nail spacing information is provided by Timay&Tempo.
  • The Power Save Feature saves power by turning off the cooling fans and laser pointing light after 10 minutes of inactivity.
  • Height-Adjustable Machine Foot allows a comfortable usage position to be selected according to different user habits.
  • 3 Years Product Warranty
  • CE Standard

Technical Features

  • Power: 380 Volt 50Hz
  • Fastening Speed: 2 rpm
  • Nailing Force: 1.500 N
  • Nail Height: 25.5 mm
  • Jaw Depth: 216.5 mm
  • Dimensions WxLxH: 490mm x 480mm x 1260mm
  • Weight: 60 kg
  • Sound level: 45-60 dB
  • Power Consumption: 0.37 kW

Optional Features

  • Thanks to its Multiple Activation Feature, it allows the machine to be controlled by hand or foot for sitting and standing fastening operations.
  • Thanks to the Flashing Light Feature, it helps the factory production managers to learn the working status of the machines remotely.
  • Thanks to the LED Lighting Feature, extra illumination of the nailing area is ensured, preventing nailer errors.
  • Thanks to the Anti-Wrinkle Apparatus, fabric creases are minimized when nailing to fabrics of different thicknesses.
  • Production line performance and efficiency are maximized by developing Special Solutions according to your needs.
